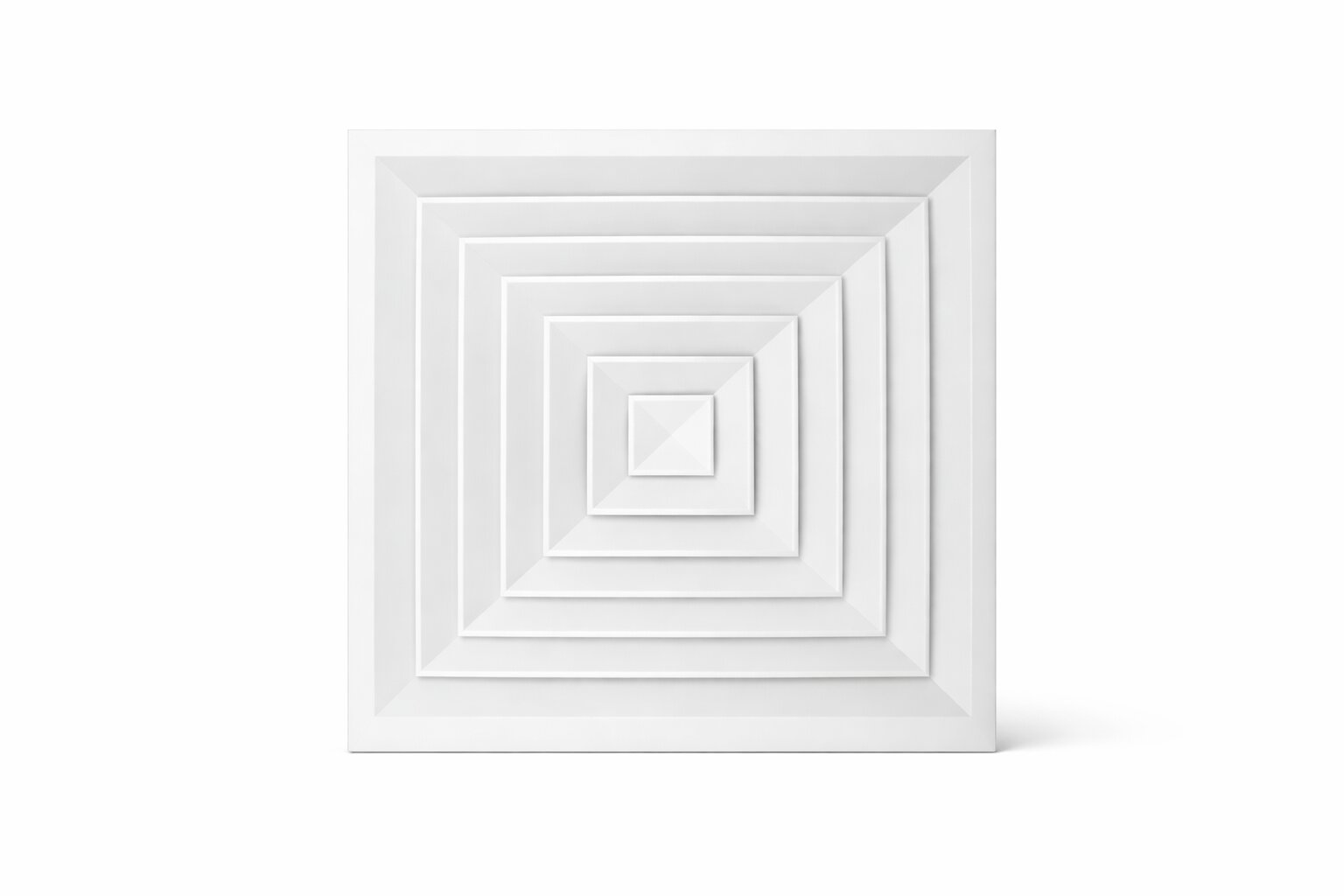

The Multicone Ceiling Square Diffuser is a highly efficient and aesthetically pleasing solution for balanced air distribution in commercial and architectural spaces. Constructed with a robust extruded aluminum profile frame and a specially pressed aluminum sheet core, this diffuser is engineered for both supply and return air applications. Its standard 4-way blow pattern ensures an even, comfortable dispersion of air across the room. Designed with convenience in mind, it features a fully removable core that significantly simplifies installation, grants immediate access to the plenum space, and allows for quick damper adjustments without requiring specialized tools.
Material Construction: Manufactured using a high-grade extruded aluminum profile frame combined with a precision-pressed aluminum sheet core.
System Application: Highly versatile and suitable for both supply and return air configurations.
Airflow Pattern: Delivers a standard 4-way blow diffusion pattern to ensure uniform air distribution.
Core Design: Features a completely removable core for effortless damper adjustment, easy plenum access, and streamlined installation.
Available Neck Sizes: Offered in nominal sizes of 150x150 mm, 225x225 mm, 300x300 mm, 375x375 mm, and 450x450 mm.
Ceiling Integration: Specifically available with an overall size of 595x595 mm to drop perfectly into standard grid ceiling systems.
Optional Accessories: Can be paired with an opposed blade damper and a plenum box (featuring either top or side entry spigots) for comprehensive system control.
Surface Finish: Supplied in a standard off-white finish, with custom color-matching available on demand to blend seamlessly with any ceiling design.

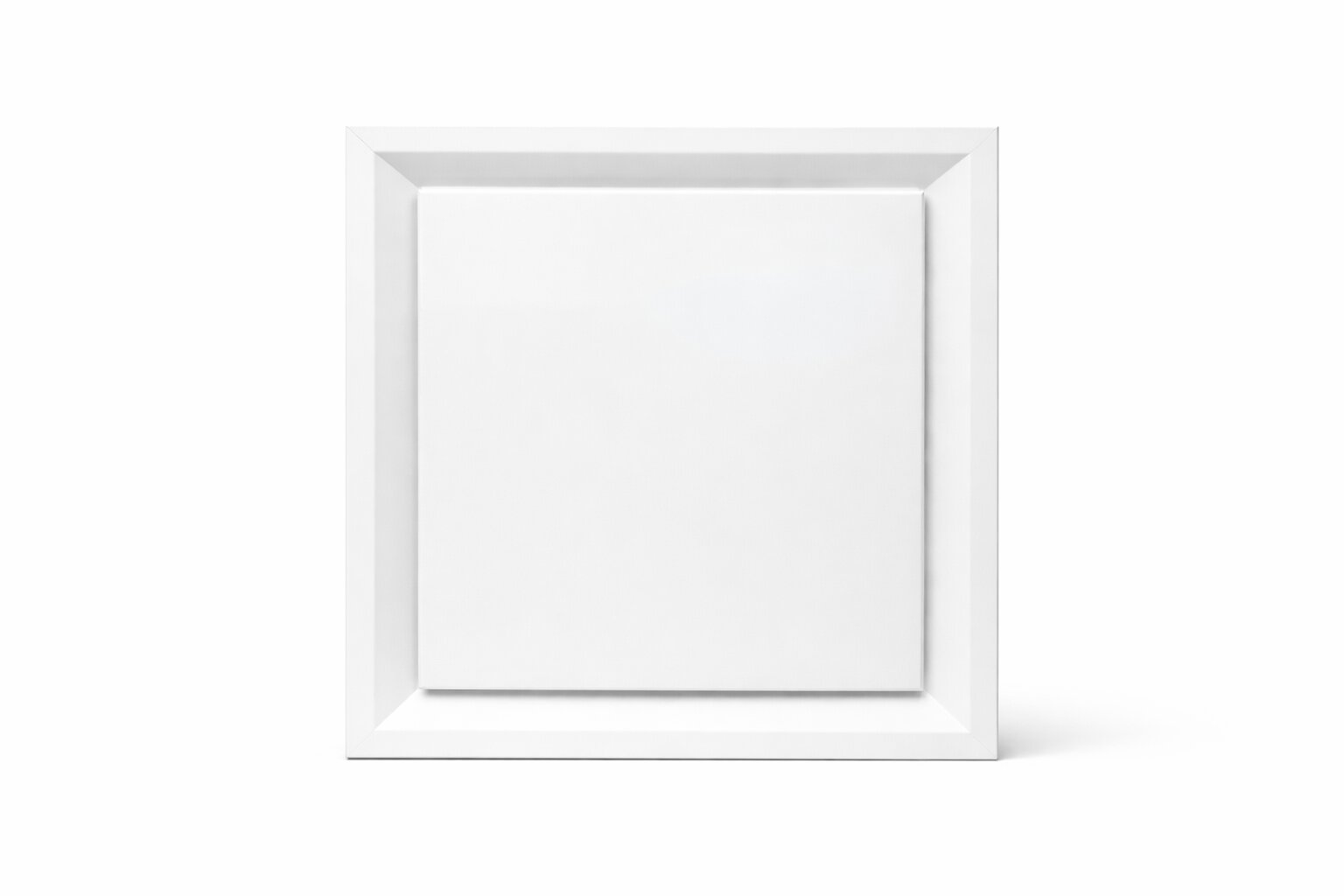

The Plaque Type Ceiling Diffuser offers a sleek, unobtrusive aesthetic perfect for modern architectural spaces that require superior air distribution without compromising on design. Crafted from a high-grade extruded aluminum frame and a solid sheet face plate, this diffuser delivers a clean, flush look while maintaining exceptional performance in both supply and return air applications. Featuring a standard 4-way blow diffusion pattern, it ensures a balanced and comfortable indoor climate. For maximum convenience during setup and maintenance, the center face plate is fully removable, allowing for effortless installation, quick damper adjustments, and easy access to the ductwork.
Material Construction: Manufactured from a high-grade extruded aluminum frame and a durable aluminum sheet plate for a premium finish.
System Application: Versatile engineering suitable for both supply and return air distribution systems.
Airflow Pattern: Delivers an architectural 4-way blow diffusion pattern for optimal, draft-free air dispersion.
Core Design: Equipped with a completely removable center face plate to streamline installation and allow immediate access for damper tuning.
Available Sizes: Offered in standard nominal sizes of 150x150 mm, 225x225 mm, 300x300 mm, 375x375 mm, and 450x450 mm.
Optional Accessories: Can be seamlessly paired with an opposed blade damper and a plenum box (featuring top or side entry spigots) for complete airflow control.
Surface Finish: Supplied in a standard off-white finish, with custom color-matching available on demand to blend perfectly with any ceiling architecture.

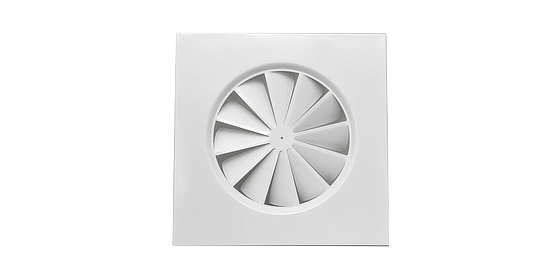

The Swirl Type Fixed Blade Ceiling Diffuser is expertly crafted to deliver superior air mixing and temperature equalization in commercial and industrial spaces. Manufactured from a high-quality pressed aluminum sheet, this diffuser is optimized for high-performance supply and return air applications. Its specialized fixed blade design generates a high-induction, horizontal radial air pattern. This rapid mixing of supply air with the room’s ambient air ensures a draft-free environment and consistent comfort. With a face size designed to integrate perfectly into standard grid ceilings, it offers a seamless blend of advanced aerodynamics and modern architectural appeal.
Material Construction: Crafted from a high-quality pressed aluminum sheet for a lightweight yet highly durable build.
System Application: Engineered for high-efficiency supply and return air distribution systems.
Airflow Pattern: Produces a horizontal radial air pattern with high induction, utilizing a precisely angled fixed blade design for optimal room air mixing.
Mounting System: Designed for secure and straightforward fixing directly to a duct collar or a matching plenum box.
Size & Dimensions: Features standard 315 mm and 400 mm diameter collars, integrated into a convenient 595 x 595 mm face size for easy drop-in installation in grid ceilings.
Optional Accessories: Can be fully equipped with a butterfly damper and a plenum box (featuring top or side entry spigots) for precise airflow volume regulation.
Surface Finish: Comes standard in an off-white finish, with custom color-matching available on demand to suit your specific architectural requirements.

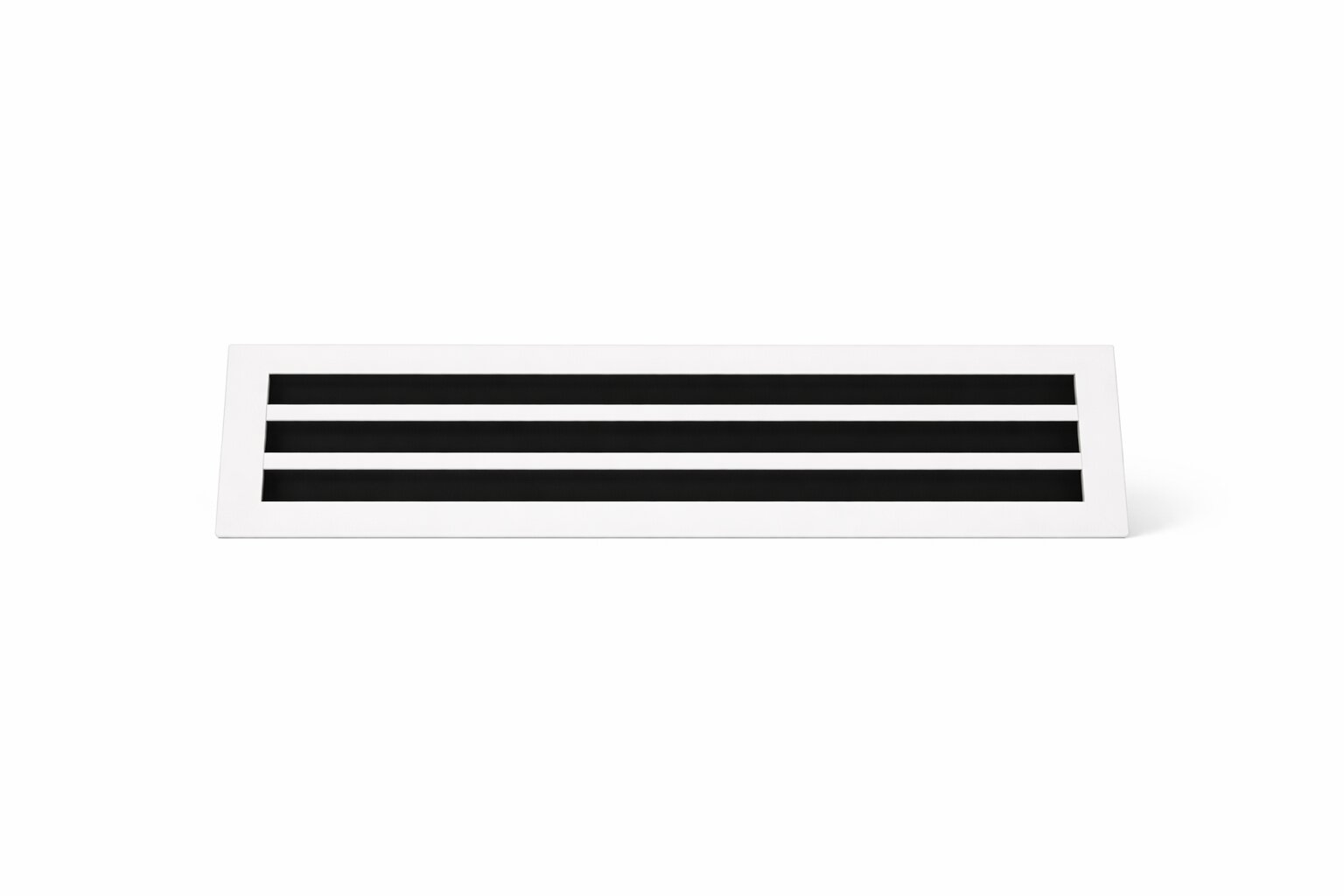

The Linear Slot Diffuser offers a perfect blend of architectural elegance and high-performance airflow control, making it an ideal choice for modern, continuous ceiling installations. Constructed from premium extruded aluminum profiles, this diffuser is designed for seamless integration into both supply and return air systems. It features fully adjustable vanes that allow for precise, on-site modifications to the air direction, ensuring optimal comfort and draft-free air distribution. With its clean linear aesthetic, highly customizable slot configurations, and optional mitered corners, it provides a sophisticated, unbroken finish for any commercial or high-end residential space.
Material Construction: Manufactured from high-grade extruded aluminum profiles for structural durability and a crisp, premium finish.
System Application: Engineered specifically for versatile ceiling installations in both supply and return air configurations.
Airflow Control: Features adjustable vanes to easily modify the air direction, built with a standard 25 mm slot width.
Design Flexibility: Available with 90-degree mitered corners in 300 mm section lengths to seamlessly accommodate continuous architectural runs and corner turns.
Size Range: Highly customizable sizing, offering anywhere from 1 to 6 slots, with individual section lengths ranging from 300 mm to 1800 mm.
Mounting System: Utilizes a secure, concealed screw fixing arrangement accessed directly through the slot opening to maintain a clean, hardware-free visible surface.
Optional Accessories: Can be seamlessly paired with a hit & miss damper for precise air volume regulation, as well as a plenum box featuring top or side entry spigots.
Surface Finish: Supplied in a standard off-white finish, with custom color-matching available on demand to suit your specific interior design.

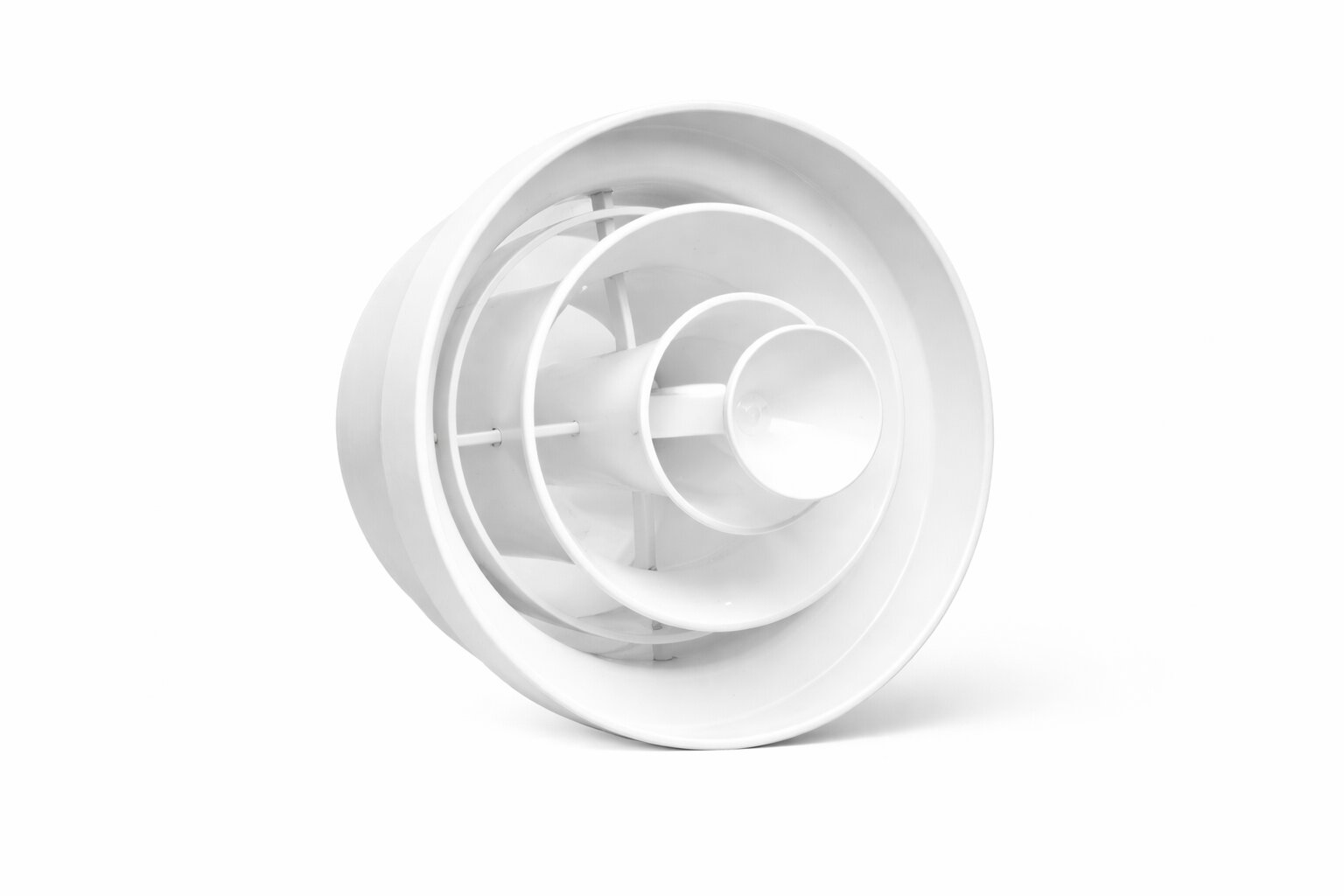

The Hi-flow Jet Diffuser is specifically engineered to meet the demanding HVAC requirements of large-scale environments where high air volumes and long throw distances are essential. Manufactured from high-grade aluminum sheet, this robust diffuser excels in supply air applications for expansive spaces such as shopping malls, airports, auditoriums, and industrial halls. Its standout feature is an innovative “reversible and rotatable” core design, which allows site engineers to effortlessly switch between a concentrated, long-throw jet pattern and a broader, short-throw diffusion pattern based on the specific heating or cooling needs of the season. With versatile mounting options, it delivers both powerful aerodynamic performance and highly adaptable airflow management.
Material Construction: Crafted from a high-grade aluminum sheet for lightweight durability and long-lasting performance.
System Application: Designed exclusively for high-capacity supply air distribution systems.
Performance Focus: Optimized to deliver high airflow and extensive throw capabilities, making it the perfect solution for large, open-plan areas.
Core Design: Features a unique “reversible and rotatable” core that can be manually adjusted to produce either a long-throw jet or a short-throw diffuser pattern.
Mounting System: Can be securely installed using screw or pop rivet fixing directly onto a round duct collar or a square mounting plate.
Available Sizes: Offered in standard diameter sizes of 250 mm, 315 mm, 380 mm, and 400 mm to accommodate various ducting requirements.
Optional Accessories: Can be paired with a butterfly damper for precise volume control and a specialized mounting plate for square duct installations.
Surface Finish: Supplied in a standard off-white finish, with custom color-matching available on demand to blend seamlessly with your facility’s architecture.

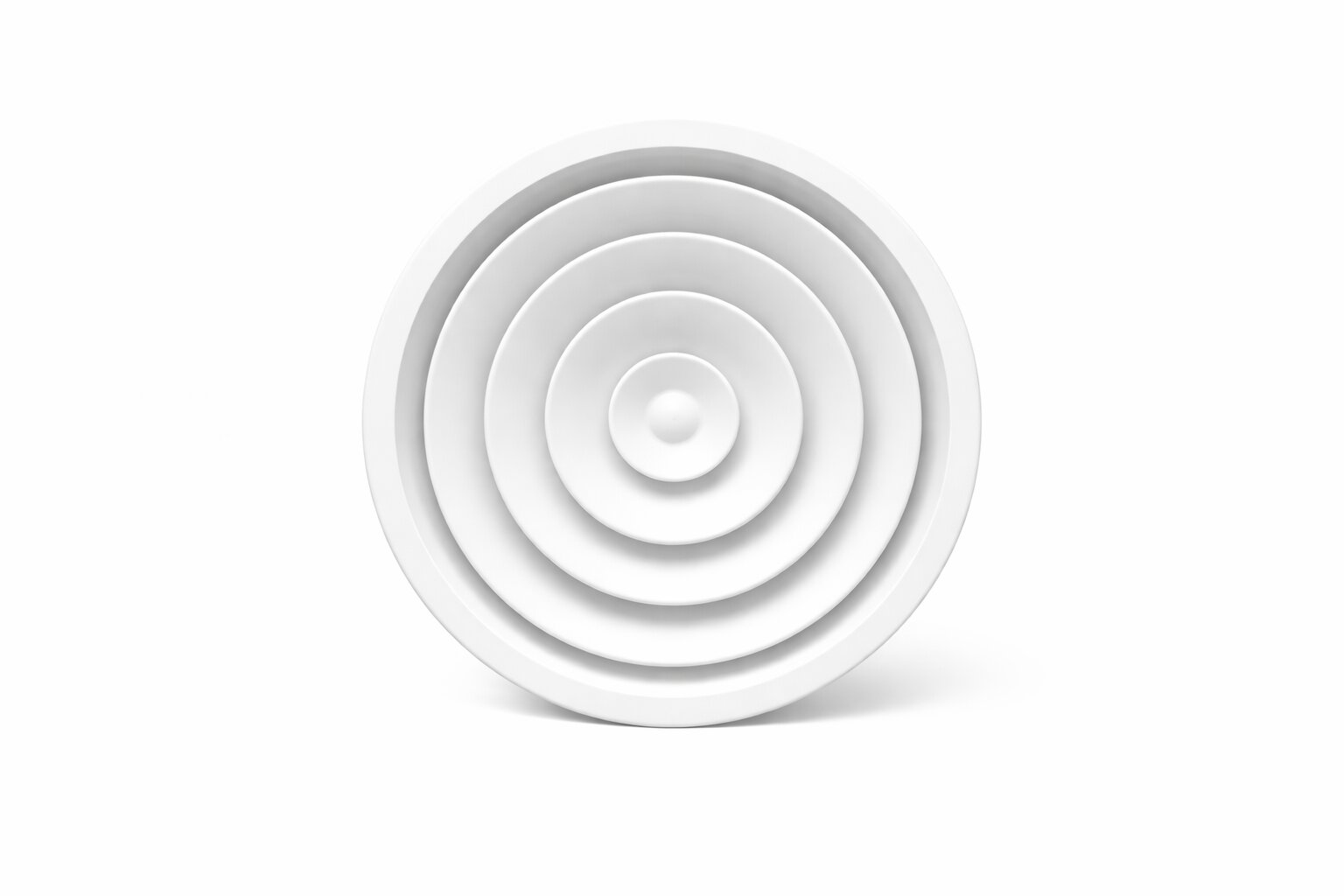

The Circular Diffuser with Removable Core is a classic, highly versatile solution for achieving balanced, draft-free air distribution in a wide variety of commercial and residential spaces. Manufactured from a high-grade aluminum sheet, this diffuser operates efficiently in both supply and return air applications. Its standout feature is the fully removable center core, which provides contractors and maintenance teams with unparalleled convenience. This practical design not only streamlines the initial installation process but also allows for immediate, tool-free access for routine cleaning and quick damper adjustments without the need to dismantle the outer frame.
Material Construction: Manufactured from a high-grade aluminum sheet for a lightweight yet durable build.
System Application: Versatile engineering suitable for both supply and return air distribution systems.
Core Design: Features a fully removable center core to facilitate rapid installation, effortless cleaning, and quick damper adjustments.
Mounting System: Designed for secure and straightforward installation using screw fixing or pop rivets directly onto a round duct collar.
Available Sizes: Offered in a comprehensive range of standard diameters, including 150 mm, 200 mm, 250 mm, 300 mm, 375 mm, 400 mm, and 450 mm.
Optional Accessories: Can be seamlessly paired with a butterfly damper for precise regulation of airflow volume.
Surface Finish: Comes standard in an off-white finish, with custom color options available on demand to blend perfectly with any ceiling architecture.

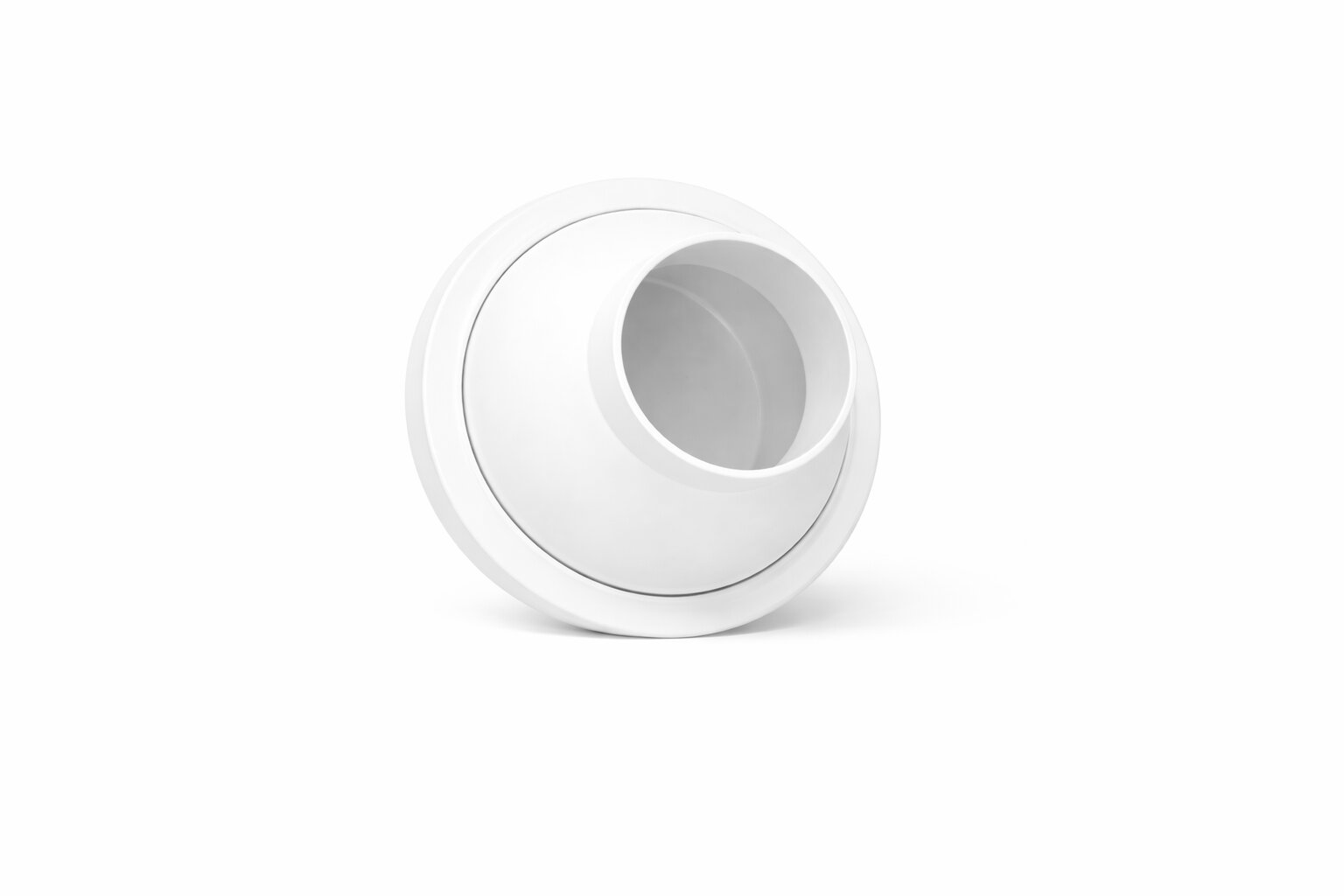

The Spot Diffuser / Jet Nozzle is specifically engineered to deliver targeted, high-velocity airflow across expansive spaces. Constructed from a high-grade aluminum sheet, this specialized diffuser is the ideal solution for supply air applications in large-scale environments like auditoriums, sports arenas, airports, and industrial facilities where a powerful, long air throw is essential. Its defining feature is a fully adjustable nozzle that can be smoothly pivoted in all directions, granting facility managers and contractors precise control over the air distribution path. With a straightforward flange-mounting design, it combines powerful aerodynamic performance with rugged durability to meet the most demanding HVAC requirements.
Material Construction: Manufactured from a high-grade aluminum sheet for lightweight strength and long-lasting durability.
System Application: Specifically designed for high-capacity supply air distribution in large areas requiring an extended throw.
Airflow Control: Features a fully adjustable nozzle capable of directing the air jet in all directions for maximum environmental control.
Mounting System: Designed for secure and straightforward installation using screw fixing directly from the flange onto a round duct collar.
Available Sizes: Offered in standard diameter sizes of 100 mm, 200 mm, 300 mm, and 400 mm to suit various ducting and airflow needs.
Optional Accessories: Can be paired seamlessly with a butterfly damper for accurate, on-site regulation of the air volume.
Surface Finish: Supplied in a standard off-white finish, with custom color-matching available on demand to integrate perfectly with your facility’s interior design.

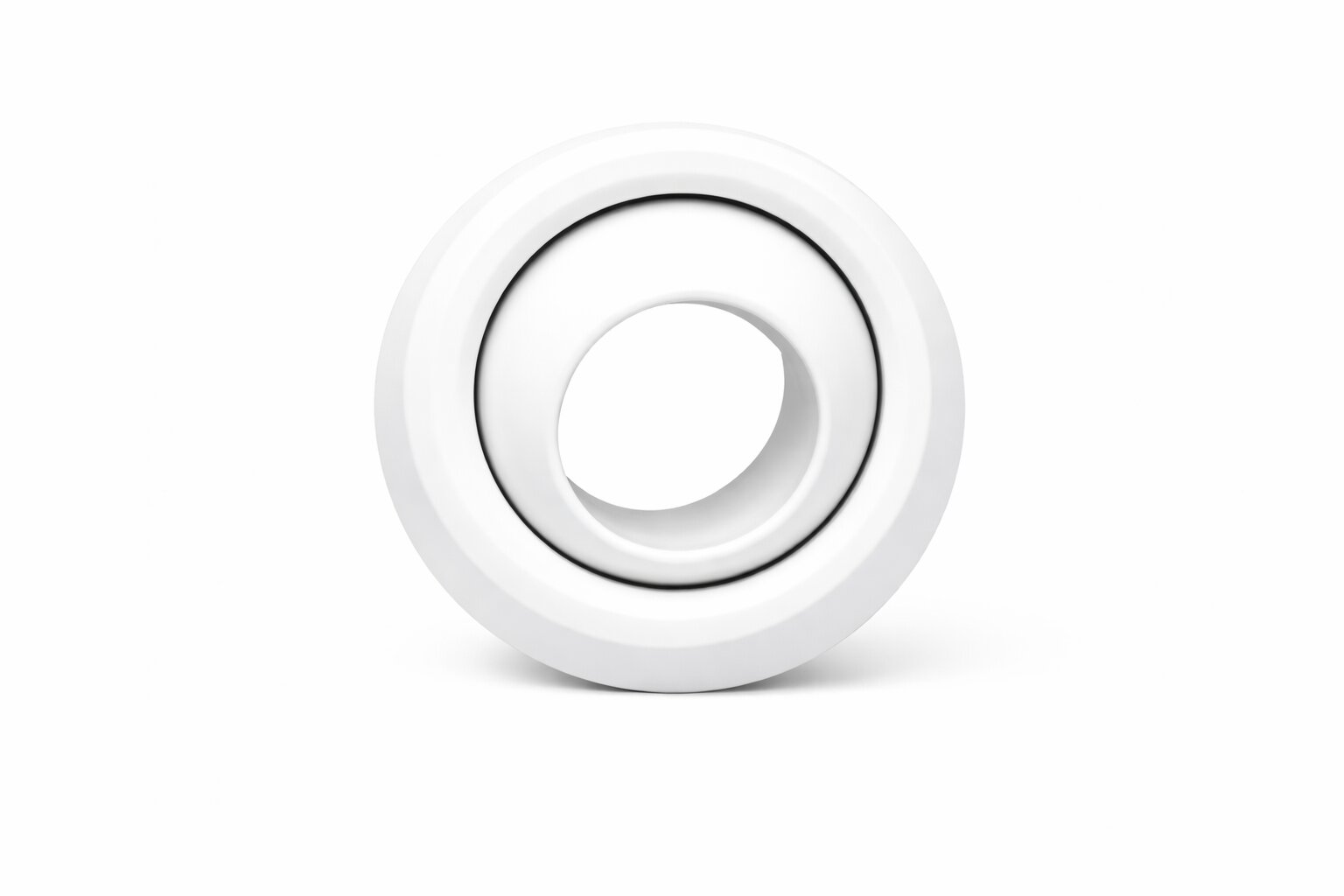

The Jet Nozzle Eyeball Type is the perfect synergy of architectural aesthetics and high-performance engineering, designed specifically for supplying air in large, expansive environments. Manufactured from a high-grade aluminum sheet, this specialized nozzle excels at delivering high air volumes over long throw distances while maintaining exceptionally low noise levels. Its standout feature is a manually adjustable eyeball core that can smoothly pivot up to 30 degrees in any direction, providing pinpoint accuracy for targeted air distribution. Combined with a concealed mounting mechanism, it offers a seamless, premium finish that is ideal for airports, shopping malls, theaters, and large atriums where both powerful performance and visual appeal are paramount.
Material Construction: Crafted from a high-grade aluminum sheet for a lightweight, durable, and sleek build.
System Application: Engineered for high-capacity supply air distribution in large-scale areas requiring extended throw distances.
Acoustic & Aerodynamic Performance: Designed to deliver high air volume and a long throw while operating at a noticeably low noise level.
Airflow Control: Features a manually adjustable eyeball nozzle capable of pivoting 30 degrees in all directions for highly targeted environmental control.
Mounting System: Utilizes a concealed screw fixing arrangement with a round duct collar to ensure a clean, hardware-free visible surface.
Available Sizes: Offered in standard diameter sizes of 200 mm, 275 mm, 315 mm, and 400 mm to accommodate various ducting requirements.
Optional Accessories: Can be easily paired with a butterfly damper for precise, on-site regulation of the air volume.
Surface Finish: Comes standard in an off-white finish, with custom color-matching available on demand to blend perfectly with any architectural design.

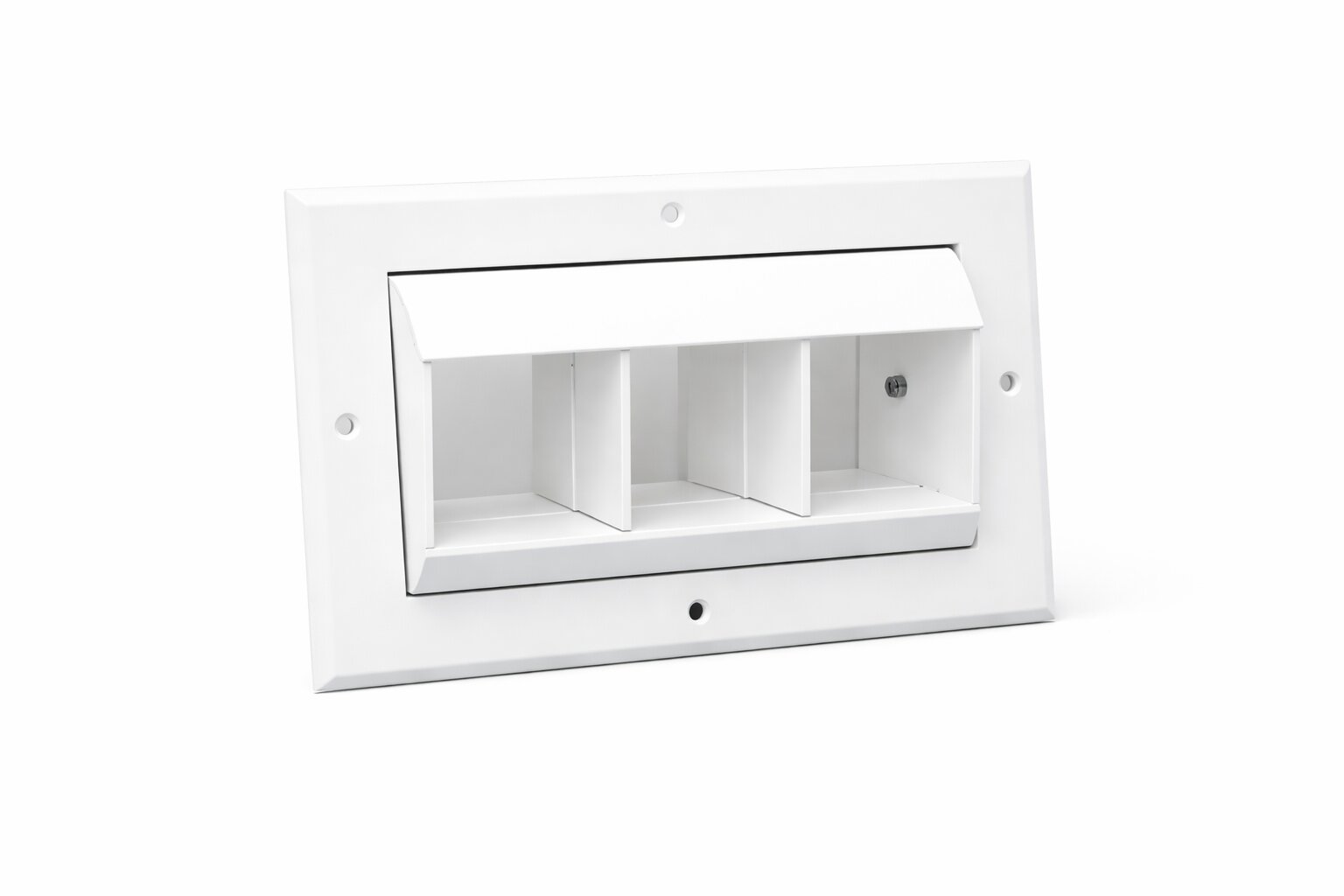

The Drum Jet Diffuser, also known as a Drum Louver, is engineered to deliver powerful, long-throw air distribution in expansive commercial and industrial spaces. Constructed from robust, high-grade extruded aluminum profiles, its sleek rectangular design is highly versatile, making it an excellent choice for side wall installations or modern exposed ductwork. What sets this diffuser apart is its exceptional directional control. It features a rotating central drum that allows for seamless up-and-down vertical air targeting, paired with individually adjustable vanes that provide precise left-to-right horizontal air sweeps. This combination ensures optimal comfort and superior air reach in facilities like gymnasiums, factories, and large retail environments.
Material Construction: Manufactured from high-grade extruded aluminum profiles for structural rigidity and a clean finish.
System Application: Specifically designed for supply air distribution in areas requiring an extended, powerful air throw.
Design Integration: Features a rectangular profile that is perfectly suited for both side wall mounting and exposed duct applications.
Vertical Airflow Control: Equipped with a smoothly rotating drum core to adjust the air direction upward or downward.
Horizontal Airflow Control: Includes adjustable internal vanes to manually direct the airflow pattern to the left or right.
Mounting System: Utilizes a standard, secure front screw fixing method for straightforward installation.
Size Range: Available in 8 standard configurations, covering size ranges from 906 to 2406 and 2010 to 3510.
Optional Accessories: Can be paired with an opposed blade damper to accurately regulate air volume.
Surface Finish: Supplied in a standard off-white finish, with custom color-matching available on demand to suit your architectural needs.
